What is Plastic Overmolding in Plastic Injection Molding?

Plastic overmolding is a critical technique for manufacturers, engineers and industrial designers looking to enhance product functionality and aesthetics. This method involves the sequential injection of multiple materials to create a single molded precision component with a myriad of benefits from increased strength to improved product appeal. In this guide, I give you a complete overview of what overmolding is, from its advantages and manufacturing techniques to considerations and materials used.

Quick Links

What is Overmolding in Plastic Injection Molding?

In the world of precision plastic injection molding, overmolding is an advanced manufacturing process that layers additional material over an already molded component.

Unlike traditional injection molding, which shapes a single material into a final product, overmolding introduces a secondary material, enveloping the initial part to create a composite object. This technique is particularly valuable for combining the strength and rigidity of plastic with the flexibility and tactile properties of rubber or other polymers.

The result is a product with enhanced characteristics, such as improved grip, increased durability, and multi-textured surfaces, broadening the scope of design possibilities and functional applications.

The 4 Advantages of Plastic Overmolding

Overmolding is a technique frequently used in product design, largely because of the many advantages it brings. Here are just a few of them.

1. Enhanced Product Strength and Durability

Plastic overmolding combines different materials to enhance component resilience, significantly improving wear and tear resistance. This technique forges strong bonds, boosting structural integrity and providing protection against impacts, vibrations, and abrasions, thus extending product life.

Because it allows stresses to be distributed efficiently, overmolding improves mechanical performance in demanding applications such as automotive and outdoor equipment. It also improves resistance to environmental factors by creating watertight seals around components to protect them from water, dust and contaminants, thus ensuring greater durability and reliability.

2. Improved Aesthetics and Ergonomic Features

Overmolding introduces a tactile and visual dimension to product design, allowing for the integration of ergonomic grips and attractive finishes. This customization enhances user interaction and satisfaction, particularly in handheld devices, user-interface components and everyday household items like ergonomically designed toothbrushes and durable, non-slip handles on tools. By improving the feel and appearance, overmolding elevates the overall product quality.

3. Cost-effectiveness and Efficiency in Production

By amalgamating multiple manufacturing steps into one, overmolding techniques such as insert molding and two-shot molding streamline production, reducing labor and assembly costs. This efficiency translates to faster turnaround times and lower production expenses, offering a competitive edge in the market. Manufacturers benefit from the simplified assembly line, leading to increased productivity and profitability.

4. Electrical and Thermal Insulation

The insulative properties of some materials used in plastic overmolding are instrumental in protecting sensitive electronic components. This added layer of security guards against electrical interference and heat, enhancing device performance and safety. Such insulation is crucial in consumer electronics, automotive components, and industrial machinery, where reliability is key.

Plastic Overmolding Techniques

There are four different plastic overmolding techniques, all of which have in common a plastic or metal starting substrate to be partially or completely coated with plastic. Let’s take a look at these techniques. Below, I’ll look at the various factors that influence the choice of the right technique for a project.

Method #1: Insert Molding

Insert molding, often referred to as single-shot molding, is a cost-effective overmolding technique widely embraced for its simplicity and efficiency. The process involves three key steps:

1. Positioning the Substrate: Initially, a pre-made insert (which could be metal, another plastic, or any other material) is placed inside the injection mold.
2. Injection of the Second Material: Subsequently, a thermoplastic or elastomer is injected into the mold, encasing the insert.
3. Cooling and Ejection: The material cools and solidifies around the insert, after which the integrated part is ejected.

Due to its streamlined process and minimal material waste, insert molding is considered a low-cost technique, ideal for producing parts with embedded components or reinforced structures.

Method #2: Multi-Shot Molding (Two-Shot Molding)

More complex and precise, multiple-shot (or two-shot) molding requires specialized injection molding machines equipped with tool rotating arrangements and multiple barrels. This process unfolds in several stages:

1. First Material Injection: Molten plastic from the first barrel is injected into the mold and allowed to cool, forming the initial layer of the product.
2. Mold Rotation and Second Injection: The mold is then rotated to align with the second barrel for the injection of another layer of plastic, enhancing the product’s features or creating multi-color designs.
3. Cooling and Ejection: After the second injection, the part cools down and is ejected, showcasing a seamless integration of two materials.

This technique is particularly advantageous for manufacturing complex parts requiring high precision and varied material properties within the same component.

Method #3: Co-Injection Molding

For applications demanding the highest degree of material integration and performance, plastic co-injection molding stands out as the most advanced yet cost-intensive option. This process involves injecting two or more plastics with different material properties into one mold, achieving:

• High Bonding Strength: As both materials are in a molten state during injection, they bond with exceptional strength, offering superior product integrity.
• Complex Material Combinations: Co-injection molding allows for the creation of parts with distinct layers of materials, catering to specific functional requirements or aesthetic preferences.

Despite its higher complexity and cost, co-injection molding is unparalleled in creating products with enhanced characteristics and multi-material compositions.

6 Factors to Consider When Choosing an Overmolding Technique

The choice of the appropriate plastic overmolding technique for the manufacturing of molded precision plastic components is influenced by several factors, each critical to the success and efficiency of the manufacturing process. Let’s take a look at the most important ones.

1. Design Complexity and Requirements

The complexity of the part’s design, including its shape, size, and the intricacy of details, plays a significant role. Techniques like multiple-shot molding are preferred for complex designs requiring multiple materials or colors in the same part.

Functional requirements, such as mechanical strength, electrical insulation, or thermal resistance, also dictate the choice. For instance, insert molding is ideal for parts needing embedded metal components for structural reinforcement.

2. Material Compatibility

The materials chosen for plastic overmolding must be compatible with each other to ensure proper bonding and functionality. Co-injection molding allows for the use of materials with different properties but requires careful selection to achieve high bonding strength.

3. Production Volume

High-volume production often benefits from techniques that can be automated and are time-efficient, such as insert molding with automated part placement. Lower volumes might justify the use of more specialized techniques like multiple-shot molding, depending on the product’s value and complexity.

4. Cost Considerations

Budget constraints significantly influence the choice of technique. Insert molding is known for being a cost-effective option due to lower material waste and simplified process, making it suitable for projects with tight budgets. In contrast, multiple-shot and co-injection molding involve higher initial costs due to more complex machinery and tooling requirements.

5. Lead Time and Turnaround

The time frame for production can affect the choice. Techniques that allow for faster cycle times and automation, such as insert molding with robotics, can significantly reduce lead times.

6. Quality and Aesthetic Requirements

For products requiring high-quality finishes, specific textures, or colors, techniques like multiple-shot molding offer superior aesthetic options. The choice might also be influenced by the need for a particular tactile feel or visual appeal.

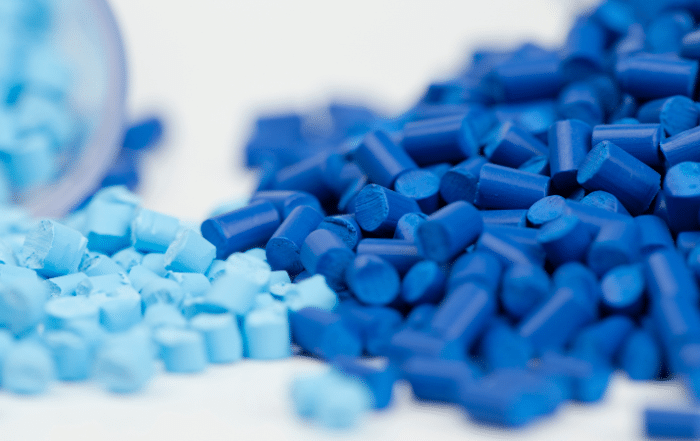

Types of Plastic Overmolding Materials

Materials used in plastic overmolding can be classified into different types, which group together several materials with similar properties. Let’s take a look at the four main types of material used in plastic overmolding.

Thermoplastics

Thermoplastic materials such as polyethylene (PE), polypropylene (PP) and polyether ether ketone (PEEK) are highly valued in overmolding applications. They are easy to mold, adapt to a variety of shapes and meet a wide range of needs and applications. Not only are these materials environmentally friendly due to their recyclability and ability to be reshaped, but they also offer a harmonious blend of strength, flexibility and color diversity. This makes them ideal for an extensive array of overmolding applications, from everyday consumer items to complex automotive parts, ensuring versatility across projects.

Elastomers

Elastomers such as thermoplastic polyurethane (TPU) and silicone offer remarkable flexibility and resilience. These characteristics make them ideal for introducing soft-touch features and ergonomic improvements into products. These materials play an essential role in the manufacture of comfortable tool handles, effective seals and vibration-damping components in electronic devices. Their unique ability to retain form and function under various stresses makes elastomers essential for improving both practicality and user engagement with products.

Engineered Resins

Engineered resins, including Polyphenylene Sulfide (PPS) and Polyetherimide (PEI), are designed for tasks demanding exceptional mechanical strength, chemical resistance, and thermal endurance. Utilized in overmolding processes, these high-performance materials produce molded precision plastic components capable of enduring extreme conditions, making them indispensable in sectors such as aerospace, automotive, and heavy machinery. Their robustness and reliability under duress make engineered resins the material of choice for critical applications.

Medical-grade Plastics

Medical-grade plastics, such as Polyetherimide (PEI) and Polyether Ether Ketone (PEEK), meet the exacting standards of the medical field with their inherent biocompatibility, sterilization capacity, and corrosion resistance. These specialized plastics are employed in overmolding to fabricate a wide range of medical apparatus, from intricate surgical tools to vital implantable devices, ensuring both the safety of patients and the durability of the instruments, in accordance with stringent medical device manufacturing standards such as ISO 13485.

What to Consider When Selecting Materials

When selecting materials for overmolding, it’s essential to consider several key factors that impact the final product’s functionality and durability. Here are just a few of these factors to keep in mind:

• Temperature Resistance: Materials used in plastic overmolding must withstand high temperatures without losing their characteristic to guarantee the integrity of the finished product.
• Hardness: The overmolding material should be durable enough to resist indentation and maintain its shape under pressure. This is crucial for preserving the grip and ensuring the two materials adhere properly without separation, affecting the product’s overall performance.
• Thickness: For applications requiring sound or vibration dampening, material thickness plays a pivotal role. Thicker materials excel in absorbing vibrations and providing a softer feel, whereas thinner materials may feel rigid and perform poorly in dampening applications.
• Bonding Capability: A successful overmolding process relies on the strong bond between materials. The ability of materials to bond effectively is fundamental to the durability and functionality of the overmolded part.
• Friction and Surface Texture: The friction level and surface texture of the materials influence how well they can bond. Materials with higher friction levels and textured surfaces tend to bond more easily, contributing to the strength and longevity of the final product. Understanding each material’s coefficient of friction helps in predicting and optimizing the bonding process.
• Chemical Resistance: The chemical resistance of the chosen materials is an important factor to consider for components exposed to chemicals, such as those used in the medical and automotive industries. The right materials will ensure the component’s long-term durability and functionality.

Final Thoughts

Overmolding is a technique for manufacturing precision-molded plastic components that clearly contributes to the development of more aesthetic, functional and resistant products. This technique facilitates the amalgamation of various materials, such as plastic and rubber, to produce items offering improved grip, greater resistance to wear, and attractive textures.

It goes without saying that the choice of appropriate materials and overmolding technique will be greatly influenced by the function and aesthetics of the desired end product, but also by its operating environment. Given the complexity of the overmolding process, it may therefore be more cost-effective and efficient to leave your overmolding needs in the hands of plastic injection molding experts for your industry.

Overmolding is one of many precision plastic injection molding services offered by PreciKam to medical device manufacturers and automotive and aerospace industries. Please contact our experts for more information on molded precision plastic components we can manufacture for you.
